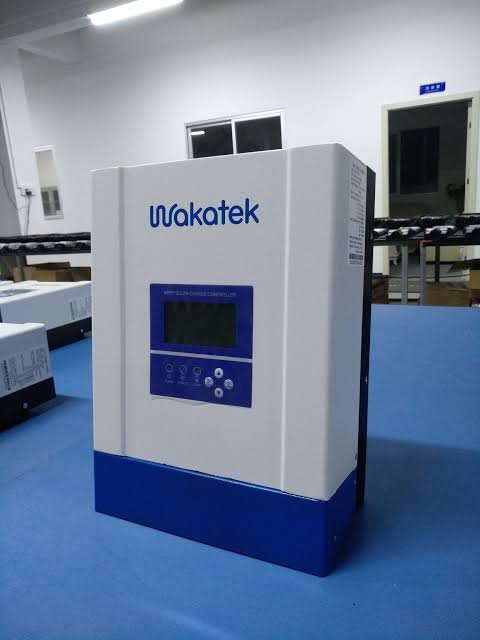

120A MPPT Solar Charge Controller for Off-Grid Systems

Make Better Use of Solar Energy

A solar charge controller helps manage the electricity flowing from solar panels to a battery. The 120A MPPT Solar Charge Controller may be suitable for compatible solar installations that require a high-current charging solution. Its suitability depends on the electrical requirements and verified specifications of the exact model.

MPPT technology tracks the solar panels’ maximum power point to help capture available solar power under changing conditions. This can support effective energy conversion in a properly designed system. However, actual performance depends on sunlight, panel arrangement, battery voltage, and controller specifications.

The advertised 120A rating is an important factor when selecting a controller. Nevertheless, it does not determine the maximum solar panel capacity or the amount of energy a battery can store. You must also check the maximum PV input voltage, permitted panel power, and supported battery voltage.

Start by estimating your daily electricity consumption. Identify the appliances you want to operate and calculate their expected energy use. Then choose compatible solar panels and battery storage. This approach helps you design a system around your actual energy requirements.

Check Compatibility and Charging Settings

Compatibility is essential for reliable operation. First, confirm the battery voltage supported by the controller. Next, check that its charging settings match the battery manufacturer’s recommendations.

Different battery chemistries can require different charging profiles. Therefore, verify which battery types the exact model supports. Do not assume that every MPPT controller works with all lead-acid and lithium batteries.

Solar panel configuration also matters. Review the panels’ open-circuit voltage, operating voltage, and combined power output. Ensure that the complete array stays within the controller’s specified electrical limits. Incorrect wiring or excessive input voltage can damage equipment.

The manufacturer’s website lists a fan-cooled MPPT controller range that includes 60A, 80A, and 120A models. However, the exact specifications for the 120A version should be confirmed with the supplier. <Cite refs={[“turn776180search1″,”turn776180search2”]}/>

Before purchasing, request the official datasheet and verify the model number, maximum PV input voltage, supported battery types, charging-current rating, and permitted solar panel power. Also, review the warranty and available protection features.

Build a Reliable Solar Charging Setup

A complete solar installation requires compatible panels, a suitable battery, a charge controller, and correctly rated electrical connections. Depending on the system design, additional protective equipment may also be necessary.

Before installation, read the product manual and follow the specified wiring sequence. Use suitable cables, connectors, fuses, and isolation devices according to the manufacturer’s instructions. If you are unsure about the electrical design, consult a qualified solar installer.

The installation environment matters as well. Follow the manufacturer’s guidance for mounting, ventilation, temperature, and moisture protection. If the model includes a cooling fan, keep its air openings clear and follow the recommended maintenance instructions.

Inspect electrical connections periodically and address any visible damage or unusual operating behaviour. For better system planning, compare expected daily energy use with available solar generation and usable battery capacity.

With compatible components and correct installation, an MPPT controller can form part of a practical solar energy system. Verify the exact model specifications before ordering to ensure that it matches your intended application.
