UPS External Maintenance Bypass Panel Aba

UPS External Maintenance Bypass Panel Aba

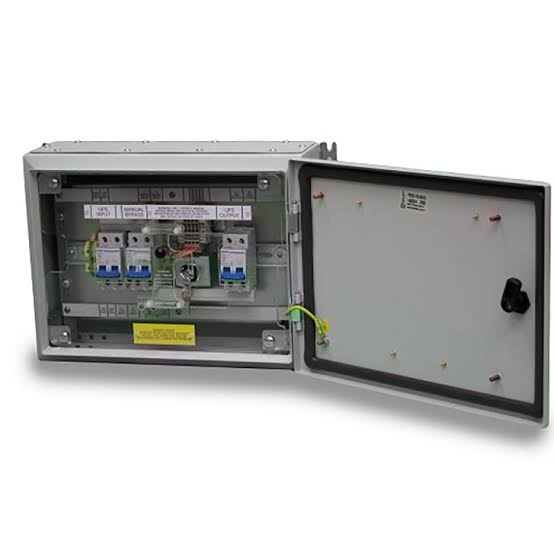

A UPS External Maintenance Bypass Panel Aba provides a dedicated alternative power path that allows a compatible UPS to be isolated for servicing, repair, battery replacement, or removal while keeping the connected critical load powered from the bypass supply.

Key Features and Benefits

• Continuous load support: Allows qualified technicians to service or replace the UPS without unnecessarily shutting down connected critical equipment.
• UPS isolation: Separates the UPS from the load during maintenance operations.
• Manual bypass control: Typically uses a dedicated bypass switch and breakers to select the UPS or bypass power path.
• Protection and interlocking: Depending on the design, panels can incorporate breakers, isolation devices, and mechanical or electronic interlocks to help prevent incorrect switching.
• Single- or three-phase configurations: External bypass systems are available for different UPS architectures and capacities.
• Flexible installation: Depending on the model, panels can be wall-mounted, rack-mounted, or installed as standalone electrical cabinets.

Why Choose an External Maintenance Bypass Panel in Aba?

For businesses in Aba operating servers, networking equipment, telecommunications systems, security equipment, or other critical loads, an external maintenance bypass can make scheduled UPS servicing considerably easier.

The bypass panel is normally installed between the UPS and the critical load, providing a separate route for utility/bypass power. When correctly operated, the load can remain supplied while the UPS is isolated for maintenance.

Available Configurations

The correct panel depends on the UPS installation. Options can include:

• Single-phase UPS bypass panels
• Three-phase UPS bypass panels
• Dual-input configurations
• N+1 redundant UPS configurations
• Parallel UPS maintenance bypass panels
• Rack-mounted bypass modules
• Wall-mounted bypass panels
• Bypass panels with integrated PDU functionality

For example, Schneider Electric offers dedicated parallel maintenance bypass panels for specific Easy UPS installations, while other manufacturers provide external bypass systems for individual UPS units.

Important Specification Checks

Before purchasing a UPS External Maintenance Bypass Panel, confirm:

1. UPS manufacturer and exact model
2. UPS capacity in kVA/kW
3. Input and output voltage
4. Single-phase or three-phase configuration
5. Bypass source arrangement
6. Maximum current rating
7. Number of UPS units
8. Required breaker and isolation configuration
9. Wall, floor, or rack mounting requirements
10. Interlocking and UPS communication requirements

For larger systems, the bypass panel must be properly sized for the full critical-load current. Manufacturer documentation may specify separate UPS input, UPS output, bypass input, and critical-load connections.

Professional Installation

A maintenance bypass panel carries potentially hazardous mains voltage and should be specified, installed, commissioned, and operated by a qualified UPS/electrical professional. Incorrect switching can leave the load unprotected or damage the UPS. Manufacturer instructions should be followed for the exact transfer sequence.

For local technical support in Aba, STEFF GLOBAL TECH is a local electrical service business that may be worth contacting to discuss installation requirements. This listing does not establish that it stocks the specific UPS bypass panel.
