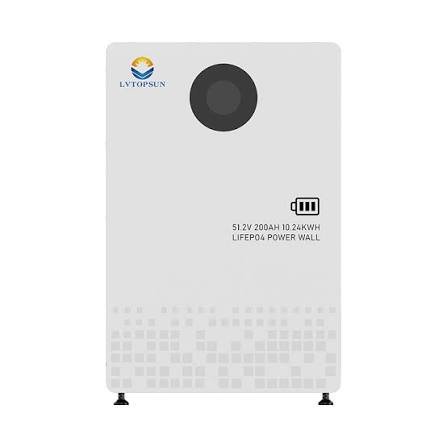

LVTOPSUN LVTS-512200-G3 51.2V 200Ah 10.24kWh Lithium Battery

Expandable Lithium Battery Solution

Store More Solar Energy

The LVTOPSUN LVTS-512200-G3 200Ah Lithium Battery offers a practical storage solution for homes and businesses using solar power. It combines a 51.2V nominal voltage with a 200Ah capacity to provide 10.24kWh of nominal energy. This capacity helps users store electricity for later use instead of relying only on immediate solar production.

The battery uses LiFePO4 technology, which is designed for stationary energy storage. When paired with a suitable inverter and correctly sized solar array, it can support daily energy management and backup power. The actual backup duration depends on connected appliances, their power requirements, and the available stored energy.

Smart Communication and Monitoring

The LVTOPSUN LVTS-512200-G3 200Ah Lithium Battery supports CAN, RS485, and RS232 communication interfaces. These connections help it exchange operating information with compatible equipment. Before installation, check that the inverter supports the battery’s communication protocol and recommended settings.

A built-in display provides access to battery information. This helps users monitor operation and makes routine checks more convenient. In addition, the battery management system helps manage charging and discharging within supported operating limits.

The listed maximum charging current is 100A, while the maximum discharge current is 170A. These ratings should guide system planning. Installers must also consider inverter capacity, cable size, circuit protection, and the requirements of connected appliances.

Flexible Setup and Expansion

This 200Ah Lithium Battery supports wall-mounted or floor-standing installation. Its compact design can help organize residential and commercial energy storage systems. However, the IP20 rating means the unit should be placed in a suitable protected environment. Keep it away from water and follow the manufacturer’s clearance and installation instructions.

The manufacturer lists a cycle life of approximately 6,000 cycles at 90% depth of discharge under specified conditions. This provides a useful reference for planning long-term storage. Actual results may vary with operating temperature, charge rate, discharge depth, and maintenance practices.

For larger energy needs, compatible batteries can be connected in parallel according to the manufacturer’s supported configuration. Product information lists expansion of up to 63 batteries. Professional system design is essential before increasing the number of units.

A Practical Choice for Backup Power

The LVTOPSUN LVTS-512200-G3 can support solar self-consumption, off-grid installations, and backup power applications. It stores energy when generation is available and supplies it when required. Therefore, it can help reduce dependence on grid electricity, depending on the installation and energy usage.

Choose this 200Ah Lithium Battery after reviewing your daily load and expected backup time. Confirm compatibility with your inverter and solar equipment before purchase. With suitable installation and correct settings, it can form a useful part of a reliable home or business energy storage system.
