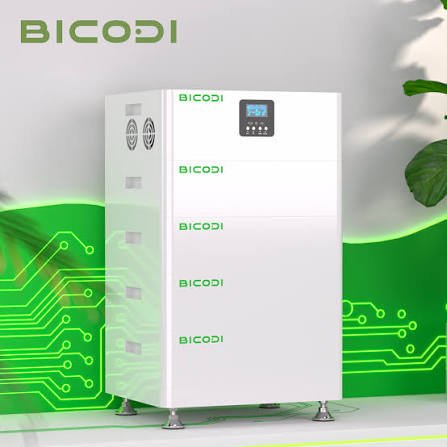

BICODI BDF048L05 5kWh Integrated Storage Battery

Efficient Solar Charging and Backup Power

The BICODI BDF048L05 5kWh Integrated Storage Battery combines energy storage with inverter functionality for residential solar applications. Its integrated design helps simplify system planning by bringing key components together. This can be useful for homeowners who want a coordinated solar storage solution rather than sourcing every component separately.

For the matching BDF048L05-2205 configuration, the manufacturer lists a maximum photovoltaic input power of 5,500W and an MPPT voltage range of 120V to 500V. The optimal PV voltage range is listed as 300V to 400V. These figures help installers assess the solar array design, but the final panel arrangement must follow the inverter’s electrical limits. <Cite refs={[“turn584929search0”]}/>

During the day, solar electricity can supply available loads and charge the battery when conditions permit. When solar production falls, the system can use stored energy to support compatible appliances. If configured for backup operation, it may also provide power during a grid outage.

Backup capability does not mean every appliance can run at the same time. Check the continuous output rating, peak power limit, and starting current of equipment such as pumps, refrigerators, and air conditioners. Careful load planning helps avoid overloads and supports reliable performance.

Inverter Performance and System Compatibility

The matching integrated model has a rated AC output of 5,000W and a listed peak power of 10,000VA. Its AC output voltage options are 220V, 230V, and 240V, with a pure sine wave output. The manufacturer also lists a peak efficiency above 94%. Actual system efficiency varies with operating conditions and load. <Cite refs={[“turn584929search0”]}/>

The product information lists CAN/RS485 communication for the battery system and RS485/Wi-Fi communication options for system monitoring. The exact available interfaces may depend on the model configuration. Confirm the communication features and monitoring options with the supplier before ordering. <Cite refs={[“turn584929search0”]}/>

The integrated system also has specified limits for solar input, charging current, AC input, and output power. These must be respected when connecting solar panels, grid electricity, and household loads. Use the manufacturer’s wiring diagrams and approved protective devices.

Before purchase, verify that the product’s exact model number matches your quotation and datasheet. This is particularly important because the BDF048L05 product family includes different storage capacities and configurations.

A Practical Solution for Modern Homes

An integrated solar battery can help households use stored electricity more effectively and manage energy consumption. The 5kWh-class configuration is worth considering for selected residential loads, depending on daily energy use and backup requirements. It can also form part of a larger system when the manufacturer-approved configuration supports expansion.

The manufacturer lists a cycle life of at least 6,000 cycles for the matching model. It also identifies certifications including UN38.3, MSDS, UL1973, and IEC62619. Buyers should request the current certificates and verify which apply to the exact system being purchased. <Cite refs={[“turn584929search0”]}/>

To choose the right setup, first calculate the daily electricity consumption of the appliances you need to support. Next, determine the required backup duration and check the solar array’s expected output. Finally, confirm the inverter’s rated power, PV input limits, installation requirements, and warranty terms.

With verified specifications and professional installation, the BICODI BDF048L05 integrated storage system can help create a coordinated home solar solution. Its combined inverter and battery design offers a practical option for households seeking energy storage, solar charging, and backup power in one system.
